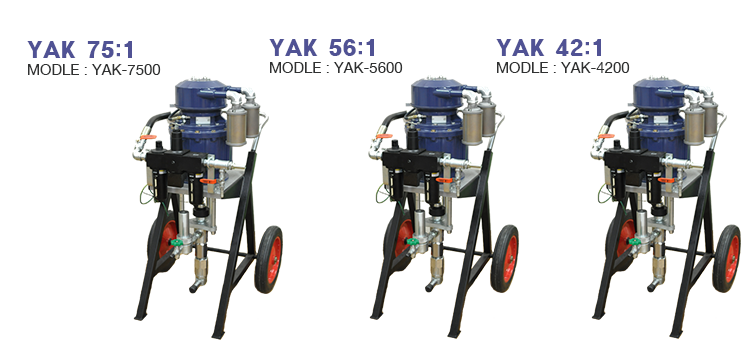

AIRLESS PUMP
홈
펌프
에어리스
고압력, 대용량을 안정적으로 이송
환경문제와 작업속도 특수환경에 대응하기위해 계속해서 새로운 도료의 개발로 인해 요구되어지는 사항이 점점 높아짐에 따라 대형 맘모스 에어모타를 사용 고점도에 고압력을 요하는 도료도 문제없이 작동되도록 하였습니다.
Technical Data
BD-7500
BD-5600
BD-4200
UNIT
Ratio
75 : 1
56 : 1
42 : 1
Delivery (max Capacity)
6.5(24)
9.2(35)
11(41)
gpm(litre/min)
Cycle Per Gallon
21
15.1
12.6
cycle
Cycle Per Litre
5.6
3.9
3.3
cycle
Max. Recommended Pump speed
140
140
140
cycle per min
Air Motor Effective Diameter
10.6(270)
10.6(270)
10.6(270)
inch(mm)
Stroke length
5(127)
5(127)
5(127)
inch(mm)
App. Air consumption At 5bar
9,632
9,632
9,632
litre / min
Air Operating Pressure Range
40-100(3-7)
40-100(3-7)
40-100(3-7)
psi(bar)
Noise Level
70~80
70~80
70~80
dB
Maximum working pressure
7,614(525)
5,685(392)
4,264(294)
psi(bar)
Packing
Leather & Teflon
Air Inlet
1
in. npt(F)
Fluid Outlet
1
in. npt(F)
Weight
98
108
110
kg
Dimension(L x W x H)
1067X670X1563
mm
Typical Fluid Handled
Epoxy Primers, Paints For Corrision Control Coating, High Viscosity Coatings, etc
Applications
Shipyards, Metal Structures, Horizontal Wall Painting, Bridge Maintenance, etc.
