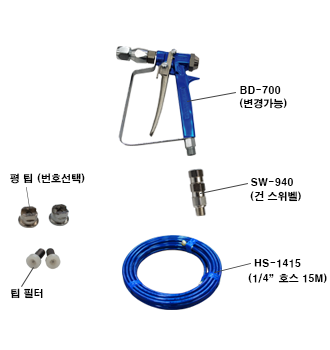

    • SET 구성
    • Pump Specifications

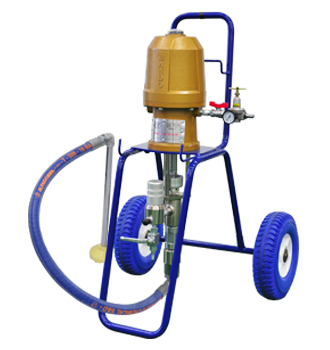

    • LEOPARD 32:1 (BD-321)
    • UNIT
      • Fluid Pressure Ratio
      • 32:1
      • .
      • Delivery (maxCapacity)
      • 1(4)
      • gpm(litre/min)
      • Cycle Per Gallon
      • 60
      • cycle
      • Cycle Per Litre
      • 15
      • cycle
      • Max. Recommended Pump Speed
      • 60
      • cycle / min
      • Air Motor Effective Diameter
      • 63(160)
      • inch(mm)
      • Stroke
      • 4(104)
      • inch(mm)
      • App.Air consumption At 5bar
      • 2,000
      • litre / min
      • Air Operating Pressure Range
      • 40-100(3-7)
      • psi(bar)
      • Noise Level
      • 80
      • dB
      • Maximum Discharge pressure
      • 3,248(224)
      • psi(bar)
      • Packing
      • Leather & Teflon
      • .
      • Air Inlet
      • 3/8
      • in. npt(F)
      • Fluid Outlet
      • 3/8
      • in. npt(F)
      • Typical Fluid Handled
      • Epoxy Primers, Corrosion Control Coating, Zinc, Low And Medium Viscosity Coatings, etc.
      • Applications
      • Shipyards, Metal Structures, Horizontal Wall Painting, Bridge Maintenance, etc.
